NetBSD's apropos(1)

Full text search instead of just searching the title
Uses mandoc(3) to parse the man pages
Uses Sqlite for indexing

$apropos ls
intro(9) - introduction to kernel internals
rump(7) - The Anykernel and Rump Kernels
NLS(7) - Native Language Support Overview
usermgmt.conf(5) - user management tools configuration file
shells(5) - shell database
protocols(5) - protocol name data base
pkg_install.conf(5) - configuration file for package installation tools
uslsa(4) - USB support for Silicon Labs CP210x series serial adapters
mpt(4) - LSI Fusion-MPT SCSI/Fibre Channel driver
mpls(4) - Multiprotocol Label Switching

$apropos ls
ls (1)    list directory contents
nslookup (8)      query Internet name servers interactively
curses_border (3) curses border drawing routines
column (1)        columnate lists
dmctl (8) manipulate device-mapper driver command
getbsize (3)      get user block size
chflags (1)       change file flags
symlink (7)       symbolic link handling
string_to_flags (3)       Stat flags parsing and printing functions
stat (1)  display file status

Old apropos(1) output

New apropos(1) output

$apropos "how to compare two strings"
how to compare two strings: nothing appropriate

$apropos "how to compare two strings"
strcmp (3)        compare strings
memcmp (9)        compare byte string
memcmp (3)        compare byte string
bcmp (3)  compare byte string
bcmp (9)  compare byte string
ldapcompare (1)   LDAP compare tool
strcasecmp (3)    compare strings, ignoring case
wcscasecmp (3)    compare wide-character strings, ignoring case
msgcmp (1)        compare message catalog and template
strcoll (3)       compare strings according to current collation

Old apropos(1) output

New apropos(1) output

How it Works: A quick detour

Parse man pages
Tokenize
Stem
Store

The Database Structure

Column	Weight
name	2.0
name_desc	2.0
description	â€‹0.55
â€‹library	â€‹0.10
â€‹return values	â€‹0.001
â€‹environment	â€‹0.20
â€‹files	â€‹0.01
â€‹exit status	â€‹0.001
â€‹diagnostics	â€‹2.0
â€‹errors	â€‹0.05
â€‹machine	â€‹1.0

The Ranking Algorithm

Require: User query q
Require: Document d whose weight needs to be computed
1:  tf â† 0.0
2:  idf â† 0.0
3:  k â† 3.5
4:  doclen â† length of the current document
5:  ndoc â† Total number of documents in the corpus
6:  for each term t in q do:
7:     for each column c in the FTS index do:
8:         nhitcount â† Frequency of term t in column c in current document
9:         nglobalhitcount â† Frequency of term t in column c in all documents
10:        ndocshitcount â† Number of documents in which t occurs in c at least once
11:         w â† weights[c]
12:         idf â† comput_idf_for_term(t, w)
13:         tf â† tf + compute_tf_for_term(t, w)
14: score â† tf * idf / (k + tf)
15: return score

idf = log(\frac{ndoc}{ndocshitcount})\times w

idf = log(\frac{ndoc}{ndocshitcount})\times w

tf = \frac{nhitcount \times w}{nglobalhitcount \times doclen}

tf = \frac{nhitcount \times w}{nglobalhitcount \times doclen}

What's the problem?

Weights are arbitrarily chosen
Not easy to try out different ranking schemes

What is machine learning?

How it helps?

Machine learning

Field of study that gives computers the ability to learn without being explicitly programmed

Types of machine learning algorithms

Supervised Machine Learning

Types of machine learning algorithms

Supervised Machine Learning
Unsupervised Machine Learning

Supervised Machine Learning

Regression Problems - Predicting a continuous value, e.g. temperature, stock prices.

Â

Classification Problems - Predicting from a discrete set of possible outcomes, e.g. is it a dog or cat in the picture, is the tumor cancerous or benign.

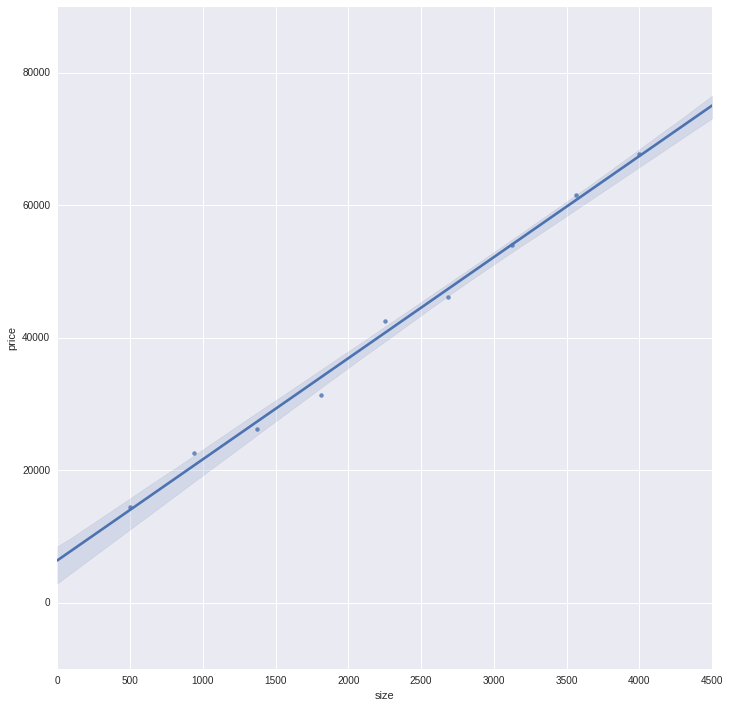

Understanding Linear Regression

Area (sqft.)	Price ($)
500	14375
937	22540
1375	26220
1812	31360
2250	42535
2687	46195
3125	54060
3562	61540
4000	67700

Understanding Linear Regression

Hypothesis:

y = w_0 + w_1x

y = w_0 + w_1x

Understanding Linear Regression

Hypothesis:

y = w_0 + w_1x

y = w_0 + w_1x

y = w_0x_0 + w_1x_1

y = w_0x_0 + w_1x_1

(x_0 = 1)

(x_0 = 1)

Understanding Linear Regression

Hypothesis:

y = w_0 + w_1x

y = w_0 + w_1x

y = w_0x_0 + w_1x_1

y = w_0x_0 + w_1x_1

(x_0 = 1)

(x_0 = 1)

y = \sum_{i = 0}^{N} w_i x_i

y = \sum_{i = 0}^{N} w_i x_i

w is the parameter for the model and x is the input

Ranking as a regression problem

score = \sum_{c = 0}^{N} w_c \times tf_c \times idf_c

score = \sum_{c = 0}^{N} w_c \times tf_c \times idf_c

w_c =

w_c =

Weight for column c

tf_c =

tf_c =

Term frequency for column c

idf_c =

idf_c =

Inverse document frequency for column c

Generation of dataset for man pages

Query logs from man-k.org provided 1100 records

Generation of dataset for man pages

Query logs from man-k.org provided 1100 records
For each query top 5 results sampled from apropos

Generation of dataset for man pages

Query logs from man-k.org provided 1100 records
For each query top 5 results sampled from apropos
Column-wise tf-idf weights generated for queries

Generation of dataset for man pages

Query logs from man-k.org provided 1100 records
For each query top 5 results sampled from apropos
Column-wise tf-idf weights generated for queries
Each result was manually labelled on a scale of 0-4 (0 being least relevant and 4 being most relevant)

Results of ranking as regression

Used w_total as the target variable while column wise tf-idf weights as input features.

Results of ranking as regression

Used w_total as the target variable while column wise tf-idf weights as input features.
w_total value of rows with label 4 were changed to 0.67 and those of rows with label 0 were changed to 0.62.

Results of ranking as regression

Used w_total as the target variable while column wise tf-idf weights as input features.
w_total value of rows with label 4 were changed to 0.67 and those of rows with label 0 were changed to 0.62.
Mean squared error used as the metric to measure the performance of the models.

MSE = \frac {1}{N} \sum_{i=1}^{N}(y^{'} - y)^{2}

MSE = \frac {1}{N} \sum_{i=1}^{N}(y^{'} - y)^{2}

Mean Squared Error

Results of ranking as regression

Used w_total as the target variable while column wise tf-idf weights as input features.
w_total value of rows with label 4 were changed to 0.67 and those of rows with label 0 were changed to 0.62.
Mean squared error used as the metric to measure the performance of the models.
Ridge regression produced an error of about 1.9 x 10^-4

Results of ranking as regression

Used w_total as the target variable while column wise tf-idf weights as input features.
w_total value of rows with label 4 were changed to 0.67 and those of rows with label 0 were changed to 0.62.
Mean squared error used as the metric to measure the performance of the models.
Ridge regression produced an error of about 1.9 x 10-4
With more data, the results will get better

Results of ranking as regression

Used w_total as the target variable while column wise tf-idf weights as input features.
w_total value of rows with label 4 were changed to 0.67 and those of rows with label 0 were changed to 0.62.
Mean squared error used as the metric to measure the performance of the models.
Ridge regression produced an error of about 1.9 x 10-4
With more data, the results will get better
Data available on https://github.com/abhinav-upadhyay/man-nlp-experiments/

$apropos -n 10 -C fork
fork (2)  create a new process
perlfork (1)      Perls fork() emulation
cpu_lwp_fork (9)  finish a fork operation
pthread_atfork (3)  register handlers to be called when process forks
rlogind (8)       remote login server
rshd (8)  remote shell server
rexecd (8)        remote execution server
script (1)        make typescript of terminal session
moncontrol (3)    control execution profile
vfork (2) spawn new process in a virtual memory efficient way

With old weights

With new weights

apropos -n 10 -C fork
fork (2) create a new process
perlfork (1) Perls fork() emulation
cpu_lwp_fork (9) finish a fork operation
pthread_atfork (3) register handlers to be called when process forks
vfork (2) spawn new process in a virtual memory efficient way
clone (2) spawn new process with options
daemon (3) run in the background
script (1) make typescript of terminal session
openpty (3) tty utility functions
rlogind (8) remote login server

apropos -n 10 create new process
init (8)  process control initialization
fork (2)  create a new process
fork1 (9) create a new process
timer_create (2)  create a per-process timer
getpgrp (2)       get process group
supfilesrv (8)    sup server processes
posix_spawn (3)   spawn a process
master (8)        Postfix master process
popen (3) process I/O
_lwp_create (2)   create a new light-weight process

With old weights

With new weights

apropos -n 10 create new process
fork (2) create a new process
fork1 (9) create a new process
_lwp_create (2) create a new light-weight process
pthread_create (3) create a new thread
clone (2) spawn new process with options
timer_create (2) create a per-process timer
UI_new (3) New User Interface
init (8) process control initialization
posix_spawn (3) spawn a process
master (8) Postfix master process

apropos -n 10 -C remove packages #old weights
groff_mdoc (7)    reference for groffs mdoc implementation
pkg_add (1)       a utility for installing and upgrading software package distributions
pkg_create (1)    a utility for creating software package distributions
pkg_delete (1)    a utility for deleting previously installed software package distributions
deroff (1)        remove nroff/troff, eqn, pic and tbl constructs
pkg_admin (1)     perform various administrative tasks to the pkg system
groff_tmac (5)    macro files in the roff typesetting system
ci (1)    check in RCS revisions
update-binfmts (8)       maintain registry of executable binary formats
rpc_svc_reg (3)   library routines for registering servers

With old weights

With new weights

apropos -n 10 -C remove packages
pkg_create (1) a utility for creating software package distributions
pkg_add (1) a utility for installing and upgrading software package distributions
pkg_delete (1) a utility for deleting previously installed software package distributions
deroff (1) remove nroff/troff, eqn, pic and tbl constructs
groff_mdoc (7) reference for groffs mdoc implementation
groff_tmac (5) macro files in the roff typesetting system
ci (1) check in RCS revisions
pkg_admin (1) perform various administrative tasks to the pkg system
update-binfmts (8) maintain registry of executable binary formats
rpc_svc_reg (3) library routines for registering servers

Ranking as a classification problem

Treat it as a problem of classifying the results as "relevant" or "non-relevant" to the query

Understanding classification

Logistic Regression

Simplest classification model

Logistic Regression

Simplest classification model
An extension of linear regression

Logistic Regression

Simplest classification model
An extension of linear regression

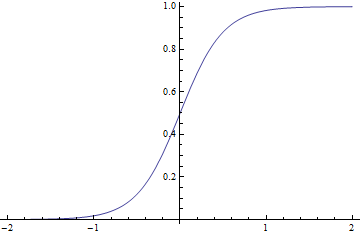

sigmoid(z) = \frac{1}{1 + e^{-z}}

sigmoid(z) = \frac{1}{1 + e^{-z}}

Results of ranking as classification

About 53.06% accuracy on the task of predicting relevance on a scale of 0-4

Results of ranking as classification

53.06% accuracy on the task of predicting relevance on a scale of 0-4
62.04% accuracy when classifying for only 4 target classes (0-3)

Results of ranking as classification

53.06% accuracy on the task of predicting relevance on a scale of 0-4
62.04% accuracy when classifying for only 4 target classes (0-3)
80.41% accuracy when reduced to only two classes

Results of ranking as classification

53.06% accuracy on the task of predicting relevance on a scale of 0-4
62.04% accuracy when classifying for only 4 target classes (0-3)
80.41% accuracy when reduced to only two classes
Conclusion - classification not quite suited for such small dataset

Why Classification Didn't Work Well

Reducing number of classes reduces ranking quality

Why Classification Didn't Work Well

Reducing number of classes reduces ranking quality
Doing multi-class classification requires learning multiple classifiers, while ranking model cannot work with multiple sets of weights.

Applying machine learning to improve apropos(1)

AsiaBSDCon 2017
